Digital Focus

If you have gone through to this point using your oscilloscope you may be able to set the focus using

both the scope and DRAS.

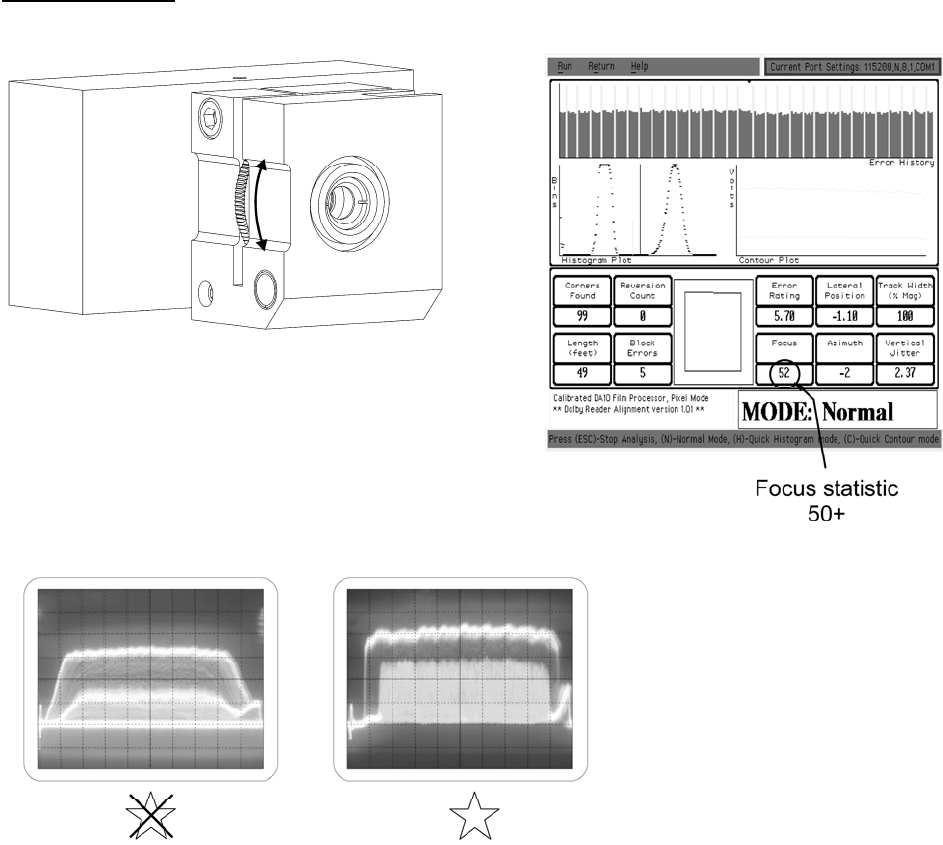

Thread and run Dolby Cat. No. 69T. Use an oscilloscope and a PC running Dolby's DRAS program to

view the digital trace and see the focus statistic. Rotate the focus ring to fine-tune the focus. A

"hollowness" in the digital burst will be visible on the scope. Results in DRAS that are above 50 are

usual.
