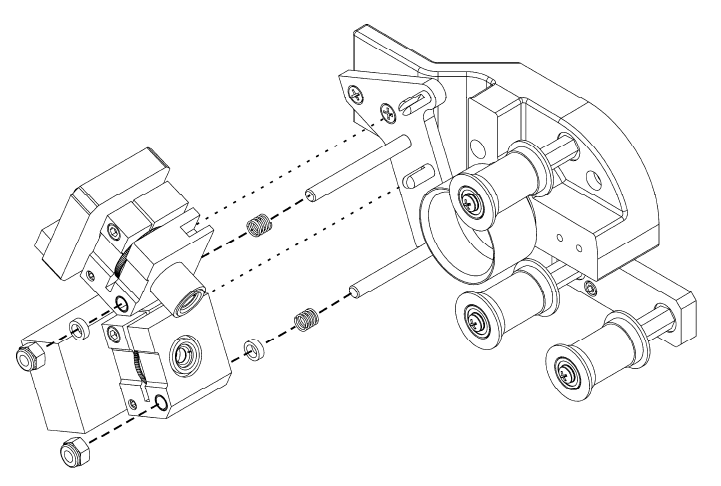

Slide each lens block over the proper threaded shaft. Each end of the hole has a bearing insert. Use care

not to catch the inner edge of the bearings and displace them. The short shaft with the cutout fits into the

slot on top of the lens block.

The analog reader is mounted on top.

Note the position of the spacers. There is one for each reader. One is outside the analog reader and the

other inside the digital reader. This spacer compensates for the distance between the analog and digital

soundtracks.
